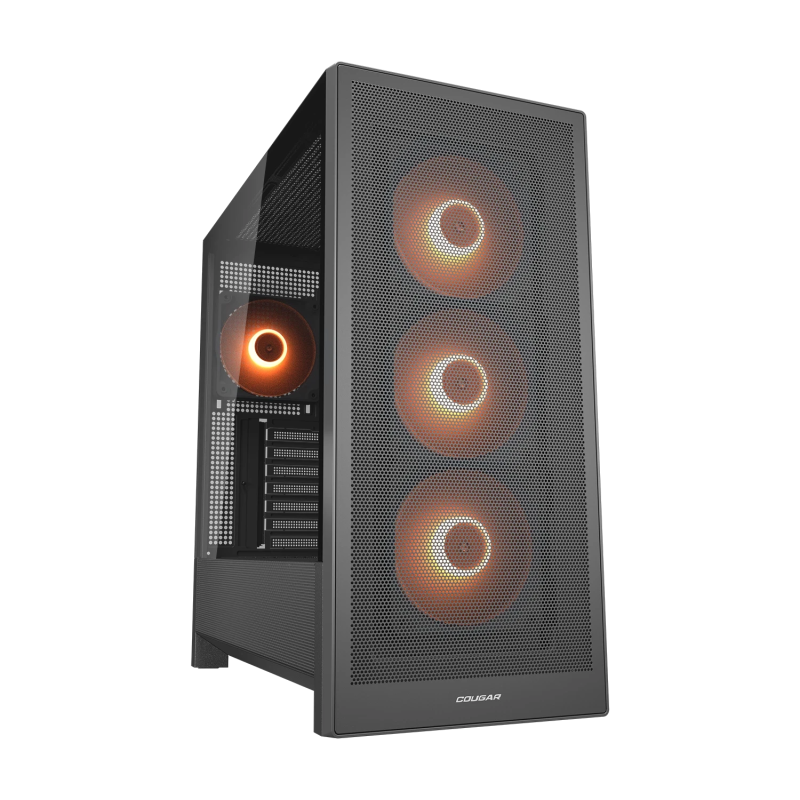

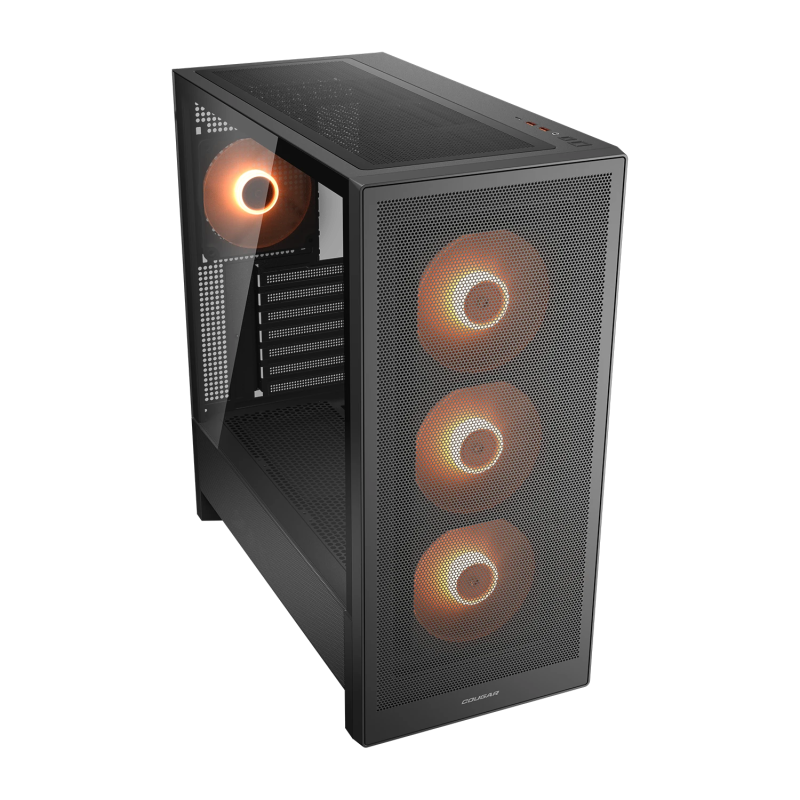

Cougar MX230 RGB

Designed for performance, the MX230 RGB is an airflow-first PC case that combines high-volume, intake-enhanced cooling potential—including a triple-fan porous PSU shroud and angled mesh base slopes—with quality-of-life features for easy upkeep. Cool, simple… and game-ready.

At a glance

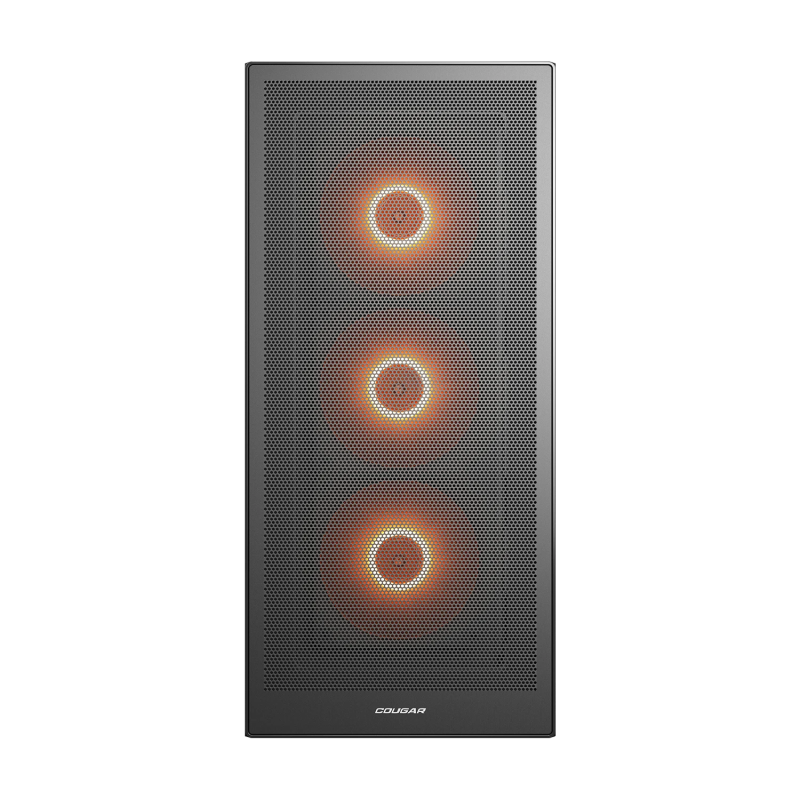

• All-metal front mesh panel doubles as dust filter.
• 3 x 120mm ARGB front fans and 1 x 120mm ARGB rear fan preinstalled.
• Porous PSU shroud seats 3 x 120mm fans, creating a true vertical intake path.
• Right-offset PSU cabin maximizes airflow space.
• Perforated base slopes increase intake surface area.
• Top filter rimmed with solid borders for a more refined look and feel.
• Supports 360mm AIO cooling up top and a maximum fan capacity of 10.
• Equipped with USB 3.2 Gen 2 2×1 Type-C (10Gbps) x 1 and USB 3.0 Type-A x 2 ports.
• Compatible with Mini ITX / Micro ATX / ATX / E-ATX motherboards.
• Accommodates up to 400mm GPUs.
• Houses 2 x 3.5” HDDs or 1+1 2.5” SSDs (converted from 3.5” drive bays).

Specifications

Dimensions (WxHxD) : 220 x 475 x 445 (mm)

I/O Panel : USB 3.2 Gen 2x1 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button

3.5" Drive Bay : 2

2.5" Drive Bay : 1+1(converted from 3.5" drive bays)

Expansion Slots :

Cooling Fan Support : Front 120mm x 3 ( Pre-installed ) / 140mm x 2 - Top 120mm x 3 / 140mm x 2 - PSU shroud 120mm x 3 - Rear 120mm x 1 ( Pre-installed ) - Speed 1000 ± 10% RPM - Connector 5V 3 Pin (ARGB) / 3 Pin (Fan) - Maximun Number of Fans : 10

Water Cooling Support : Top 360mm / 240mm / 120mm - Rear : 120mm

RGB Hub Sync with M/B : Yes

Max. Graphics Card Length : 400 (mm)

Max. CPU Cooler Height : 170(mm)

Max. PSU Length : 200 (mm)
