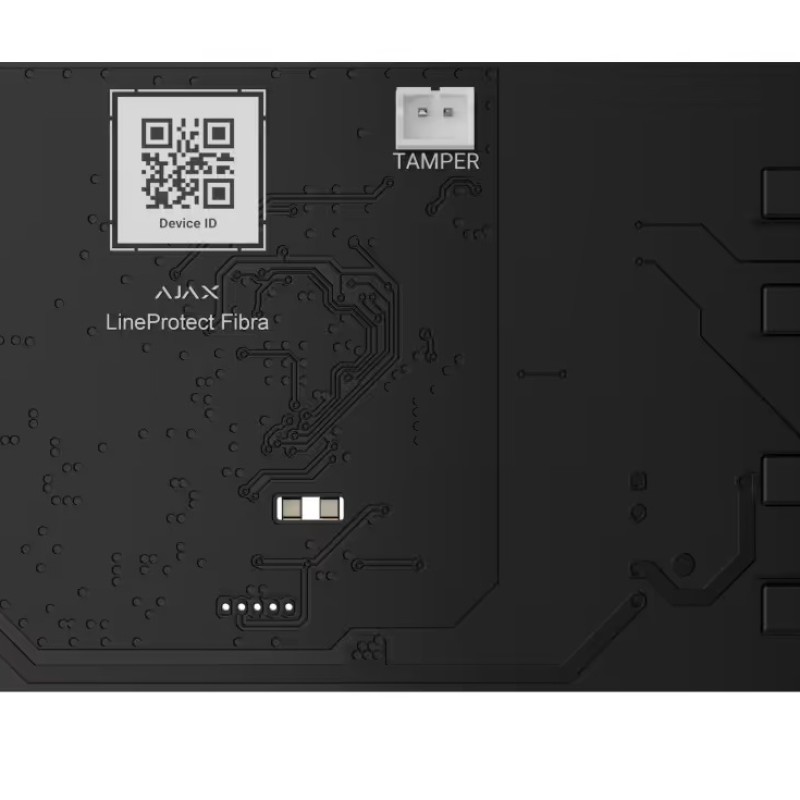

AJAX FIBRA LineProtect

** The FIBRA products can only be installed after receiving authorised certification directly from AJAX. Contact security@mstronics.com for more information on how to obtain the certification license

Increased security for wired devices with LineProtect Fibra

• LineProtect is a module to protect the Fibra line and devices from electrical sabotage. If an intruder tries to damage the security system and, for example, hits the StreetSiren Fibra with a stun gun, LineProtect will take the hit. All devices between LineProtect and the hub will continue to operate. The module can be installed at any point of the Fibra line. The output line from LineProtect can be up to 2000 meters in length. LineProtect inherits all the advantages of Ajax smart devices: it is easy to control the module from the app, receive event notifications, and configure or test LineProtect remotely

Protect against electrical shock

• LineProtect Fibra protects Ajax hubs and wired devices from sabotage when an intruder causes short circuits, applies 110/230 V~, or uses stun guns. The module monitors the input and output voltage on the Fibra line. If LineProtect detects an abnormal voltage on the line, it activates the fuses and cuts off the power supply to the devices installed between LineProtect and the hub. Note: LineProtect does not protect devices between the module and the end of the line

Easy to mount into Case

• LineProtect is inserted into Case. This casing has an optimal arrangement of wire channels, special holders for the module, and the tamper module. Several variations of casings are available
• You can mount one LineProtect module into Case or fit several devices.The required minimum number of casings can be selected for the facility's needs, which saves the budget and speeds up the installation of the security system

Adapt innovative software to any system

• LineProtect is designed to respond to threats quickly without giving intruders a single chance to sabotage the security system. We have developed a unique software algorithm to analyse the line to which LineProtect is connected. During the Lines Power Test, the module receives enough information to set its thresholds for detecting a short circuit and normal voltage values. The algorithm considers all critical parameters to select the optimal thresholds for maximum system protection
