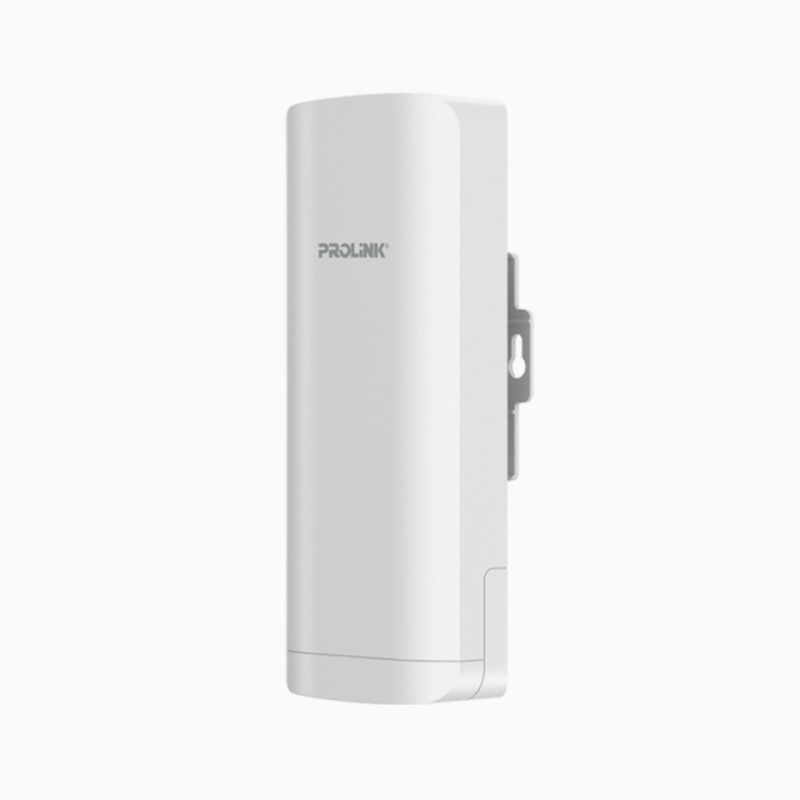

PHN1102-A PROLiNK 300Mbps Wireless-N Outdoor CPE

Complies with 2.4GHz 802.11n standard, with data rate up to 300Mbps

1 x 100Mbps WAN Port, 1 x 100Mbps LAN Port

Compact Size with built-in 12dBi MIMO panel antenna

Supports up to 1KM distance

Support Wireless Bridge/WDS, AP,Repeater, and Gateway mode

Robust housing with IP65 rating(dust-tight and water-resistant protection)

Supports Passive POE power or DC powered

Sirim approval. Comply with MCMC requirement.

PROLiNK® PHN1102 is Outdoor Wireless Bridge Access Point that complies with IEEE 802.11b/g/n standard which is featuring 12dBi high performance panel antenna where the range of Point-to-Point/Point-to-MultiPoint distance reaches up to 1Km. The PROLiNK PHN1102 supports 2.4 GHz frequency with data transfer rate of up to 300Mbps. In addition, it is equipped with Wi-Fi channel analysis tool to help avoid Wi-Fi interference and guarantee the stable wireless connection.

PROLiNK® PHN1102 is designed with IP65 dust-tight water-resistant robust housing, making it an ideal solution for creating outdoor Point-to-Point or Access Point networks. It has LED signal indicator showing current signal strength allowing installers or system commissioners to easily troubleshoot.
